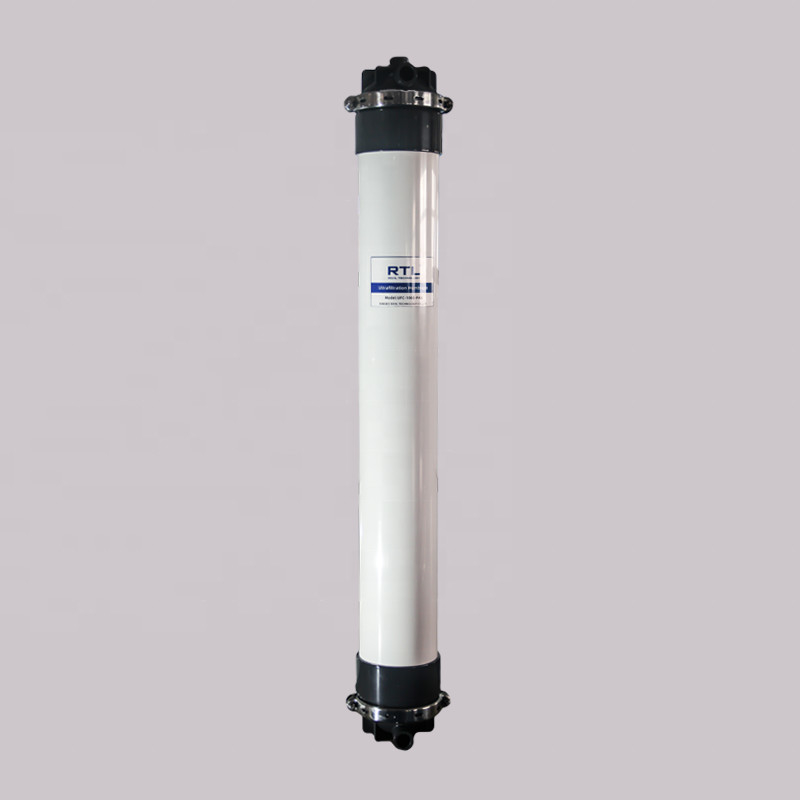

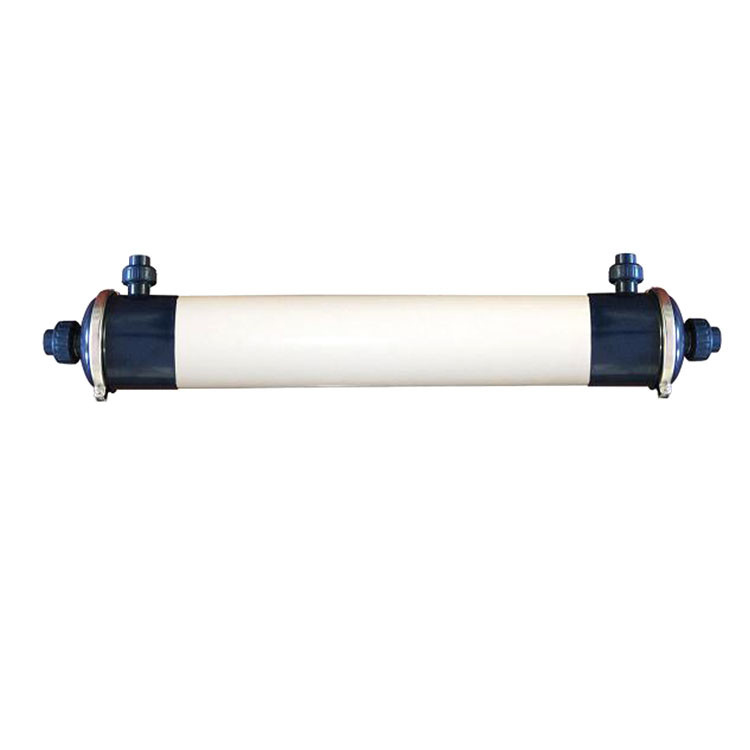

Ultra Filter Membrane 3000LPH RO System Accessories
Ultrafiltration (UF) is a variety of membrane filtration in which forces like pressure or concentration gradients lead to a separation through a semipermeable membrane.Suspend solids and solutes of high molecular weight are retained in the so-called retentate, while water and low molecular weight solutes pass through the membrane in the permeat (filtrate). This separation process is used in industry and research for purifying and concentrating macromolecular (103 - 106 Da) solutions, especially protein solutions.
UF can be used for the removal of particulates and macromolecules from raw water to produce potable water.
Specifications
| Module | UF-4021 | UF-4040 | UF-8040 |
| Size (mm) | Ø101×533.4 | Ø101×1016 | Ø201.9×1016 |
| Module type | Inside-out | Inside-out | Inside-out |
| Shell and seal materials | PVC,epoxy resins | PVC,epoxy resins | PVC,epoxy resins |
| Membrane Material | PAN | PAN | PAN |
| Max operating pressure psi(Mpa) | 43(0.3) | 43(0.3) | 43(0.3) |
| Suggest operating pressure psi(Mpa) | <15(0.1) | <15(0.1) | <15(0.1) |
| Max trans-membrane pressure psi(Mpa) | 29(0.2) | 29(0.2) | 29(0.2) |
| Operating temperature | 5~40℃ | 5~40℃ | 5~40℃ |
| Effective membrane area | 4m2 | 2m2 | 18m2 |
| Design flux | 40-150L/m2/h | 40-150L/m2/h | 40-150L/m2/h |
| Molecular Weight Cut off(Dalton) | 50,000 | 50,000 | 100,000 |
| Hollow fiber id/od size | 1.0mm/1.6mm | 1.0mm/1.6mm | 1.0mm/1.6mm |
| Hollow fiber quantity | 1400 | 1400 | 7300 |
| PH range | 3~9 | 3~9 | 3~9 |
| Initial flux | 0.8m3/h | 0.8m3/h | 4m3/h |
| Feed water turbidity NTU | <70 | <70 | <70 |
| Produced water turbidity NTU | <1 | <1 | <1 |
| Feed water turbidity residual chlorine ppm | <70 | <70 | <70 |
| Feed water pollution index( SDI 25) | <25 | <25 | <25 |
Advantages of Our MBR Modules:
All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.
Permanent Hydrobility Membrane
Strong strength, the broken strength more than 50MPa
Excellent performance and Low cost
UF membrane application
1. Industrial waste water treatment and reuse;
2. Pretreatment of RO&NF.
3. Drinking water treatment of tap water, surface water, well water and river water;
4. food and beverage processing;
5. sea water desalination engineering.
